Products Description

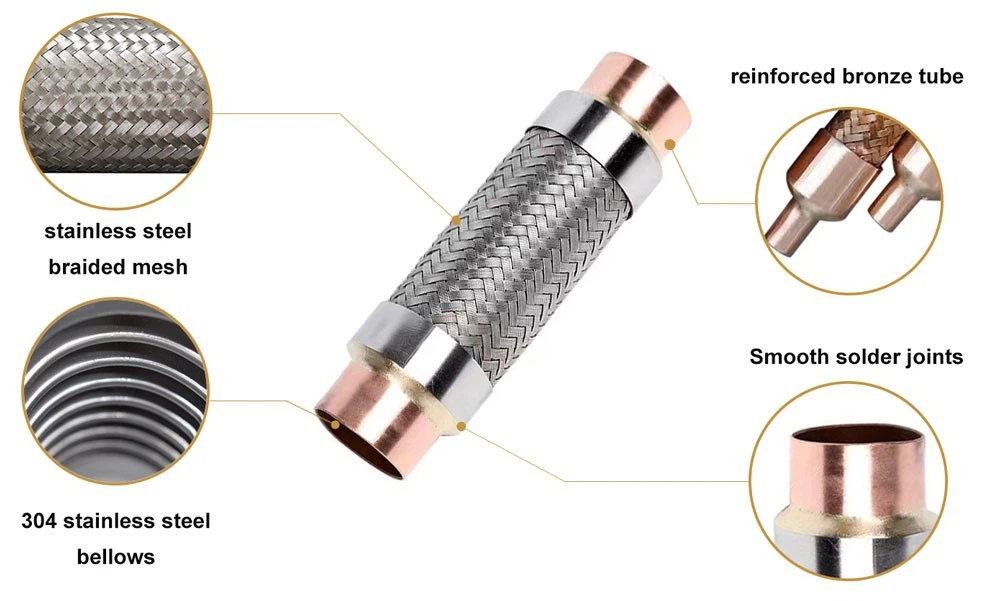

The bronze metal braided pipe connector is a high-quality flexible pipeline connector designed for installation on the suction and exhaust pipelines of air conditioning and refrigeration systems, mainly used to reduce damage to fixed pipelines caused by compressor vibration. The inner layer of this shock absorber tube has excellent elasticity and shock absorption capacity, while the outer layer is covered with a high-strength stainless steel protective mesh sleeve, which is welded and reinforced with the product to form a whole, with shock absorption and pressure bearing capacity.
|

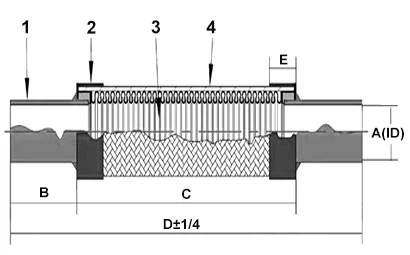

NO |
Name |
Material |
|
1 |
Welded pipe |
Bronze |
|
2 |
Metallic sheath |
Stainless steel |
|
3 |
Bellows |
Stainless steel |
|
4 |
Metal mesh |
Stainless steel |
Performance characteristics
The characteristics of bronze metal braided pipe connectors mainly include the following:
1. Good elasticity and shock absorption capability
2. High pressure resistance
3. Excellent pressure bearing and shock absorption capabilities
4. Suitable for multiple media
In summary, this product has become an indispensable component in refrigeration systems due to its excellent physical properties and wide range of applications.
Product Specification
|
Nominal size |
Dimensions |
Working pressure |
Burst pressure |
|||||||
|
Inch |
(Φ)mm ID |
A(ID) |
B |
C |
D |
E |
||||
|
1/4 |
6.35 |
6 |
1/4 |
1/2 |
6 1/2 |
7 7/8 |
200mm |
5/8 |
650 |
3250 |
|
3/8 |
9.25 |
10 |
3/8 |
3/4 |
7 |
8 1/2 |
217mm |
5/8 |
650 |
3250 |
|
1/2 |
12.7 |
12 |
1/2 |
7/8 |
7 1/4 |
9 |
228mm |
5/8 |
650 |
3250 |
|
5/8 |
15.88 |
16 |
5/8 |
15/16 |
8 |
9 7/8 |
250mm |
5/8 |
650 |
3250 |
|
3/4 |
19.05 |
19 |
3/4 |
1 1/4 |
8 1/16 |
10 1/2 |
268mm |
3/4 |
650 |
3250 |
|
7/8 |
22.23 |
22 |
7/8 |
1 3/8 |
9 1/4 |
12 |
305mm |
3/4 |
650 |
3250 |
|
1 |
25.4 |
25 |
1 |
1 3/4 |
9 7/16 |
13 |
332mm |
3/4 |
650 |
3250 |
|
1 1/8 |
28.58 |
28 |
1 1/8 |
1 3/4 |
9 7/16 |
13 |
332mm |
3/4 |
650 |
3250 |
|
1 3/8 |
34.93 |
35 |
1 3/8 |
2 1/16 |
11 7/16 |
15 1/2 |
395mm |
7/8 |
650 |
3250 |
|
1 5/8 |
41.28 |
42 |
1 5/8 |
2 1/4 |
12 3/8 |
16 15/16 |
429mm |
7/8 |
650 |
3250 |
|
2 1/8 |
53.98 |
54 |
2 1/8 |
2 11/16 |
15 3/16 |
20 1/2 |
524mm |
15/16 |
650 |
3250 |
|
2 5/8 |
66.68 |
67 |
2 5/8 |
3 1/16 |
18 |
24 1/8 |
617mm |
1 |
460 |
2300 |
|
3 1/8 |
79.38 |
80 |
3 1/8 |
3 7/16 |
20 |
26 15/16 |
684mm |
1 |
380 |
1900 |
|
3 5/8 |
92.08 |
92 |
3 5/8 |
4 1/16 |
24 |
32 1/8 |
818mm |
1 1/4 |
300 |
1500 |
|
4 1/8 |
104.98 |
105 |
4 1/8 |
4 1/2 |
24 |
33 |
836mm |
1 1/4 |
300 |
1500 |
Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering.
Product Details
Production Flow
Application
Bronze metal braided pipe connectors are mainly suitable for connecting compressors and circulation pipelines in air conditioning units, train air conditioning, subway locomotive air conditioning, multi unit air conditioning in machine rooms, automotive air conditioning, household air conditioning, freezers, freeze dryers, large washing machines, etc. They are used to absorb vibrations generated by compressors, protect the entire pipeline system, and effectively eliminate noise caused by compressor vibrations.
