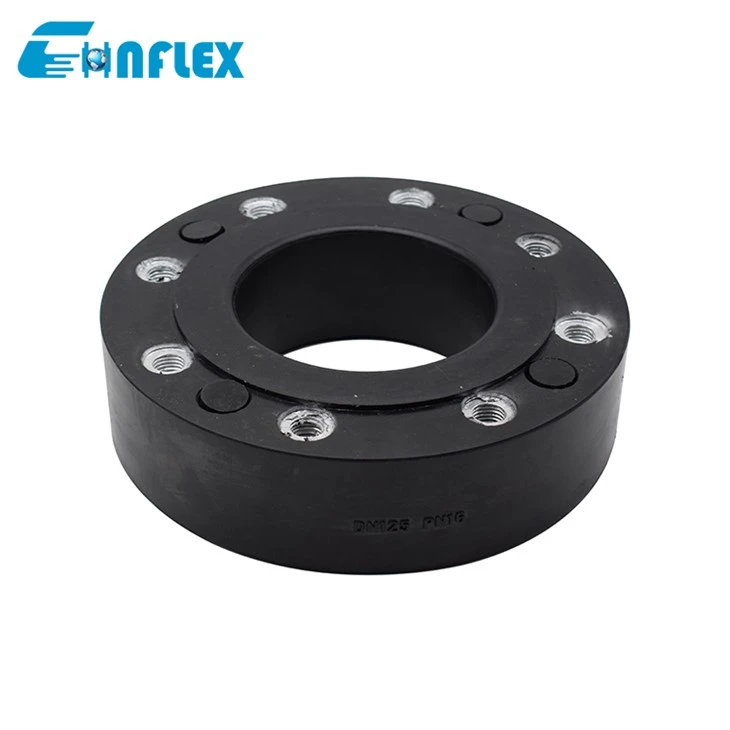

The rubber metal pipe connector is composed of EPDM rubber elastomer and 2 flange inserts. The cylindrical rubber body is fully embedded into the flange hole through vulcanization, forming a self sealing pipeline connector.

Component Parts

Item

Part

Material

Body

EPDM

Flange

Carbon steel

Performance characteristics

Rubber metal pipe connectors have excellent performance

1. Excellent corrosion resistance

2. Large elastic deformation, protecting the pipeline system from damage

3. Good shock absorption effect, effectively reducing vibration and noise in the pipeline system

4. Easy installation and maintenance, reducing maintenance costs

Product Specification

Size		Length	Allowable Movements in Operation
mm	inch	mm	D mm	D1 mm	n-M	L1 mm
20	3/4	70	109	75	4*M12	12
25	1	70	119	85	4*M12	16
32	1 1/4	70	145	100	4*M16	16
40	1 1/2	70	156	110	4*M16	16
50	2	70	171	125	4*M16	16
65	2 1/2	70	192	145	4*M16	16
80	3	70	207	160	8*M16	18
100	4	70	227	180	8*M16	18
125	5	70	257	210	8*M16	18
150	6	70	294	240	8*M20	18
200	8	90	343	295	8*M20	20

Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering.

Application

Rubber metal pipe connectors are widely used in pipeline systems, heating systems, pumps, control devices, machinery and equipment, accessories, hospitals, schools, public buildings, and industrial applications to reduce vibration, block unnecessary sound and noise propagation.
